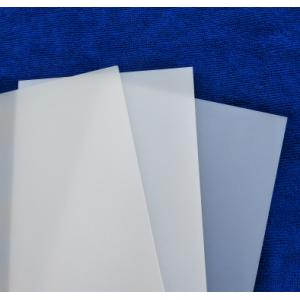

Tansparent Customized Polycarbonate Light Diffusion Plate For
Lighting Use
Polycarbonate light diffusion plate with heat resistance, higher
endurance, good mechanical strength, fireproof performance, and has
high light transmittance.excellent shielding and durability. the
light diffusion effect to achieve the best condition, the most
suitable for direct type backlight unit.
Technical information
| Material | Bayer,zhengfei(zhengfei), Mitsubishi |
| Width | 1220mm,1560mm,1820mm,2100mm/customized |
| Length | No limited |
| Thickness | 1.5-10mm |
| Color | Clear,green,opal,bronze,blue,orange,red/customized |
| Notes | Special color,size can be customized |
| 1) Impact strength: | 850J/m. About 200-350 times of common glass. |
| 2) Light weight: | About 1/2 times of glass of the same thickness. |
| 3) Light transmission: | 80%-92% for different thickness of clear color |
| 4) Specific gravity: | 1.2 g/cm3 |
| 5) Coefficient of thermal expansion: | 0.065 mm/m° C |
| 6) Temperature range: | -40° Cto 120° C |
| 7) Heat conductivity: | 2.3-3.9 W/m2 º |
| 8) Tensile strength: | >=60N/mm2 |
| 9) Flexural strength: | 100N/mm2 |
| 10) Heat deflection temperature | 140 ° C |
| 11) Modulus of elasticity: | 2, 400mPa |
| 12) Tensile street at break: | >=65mPa |
| 13) Elongation at break: | >100% |
| 14) Specific heat: | 1.16J/kgk |
| 15) Soundproof index: | 4mm-27dB,10mm-33dB |
Type selection
Polycarbonate is a widely used engineering thermoplastic resin
which is characterized by outstanding mechanical, optical,
electrical and thermal properties.We produce all kinds of pc sheets
such as solid sheets, emobssed sheets, corrugated sheets, u-lock
hollow sheets & solid sheets, plug-pattern sheets etc.
Pictures show
Product features
Applications
Company information
Founded in the 2014,SUZHOU ZHENGFEI BOARD CO.,LTD is a professional enterprise which specializes in manufacture and
processing of Polycarbonate sheet.By using fine materials (mainly
from Bayer and zhengfei) and introducing advanced co-extrusion
production line,we offer superior quality products to customer from
all around the world.
Why choose us?
1. 12 years plastic manufacturing and fabrication experience.
2. Advanced technology &equipment to ensure highly quality
product.
3. Professional R & D and production teams.
4. Rapid delivery time.
5 .Strict quality Control System.
6. Good reputation, establish long-term trade relationship with
customers.
7. Exported to America / UK/Australian /Germany /South Africa
/Middle East/etc.
